RUBICON R2 - Compact Thermal Sight

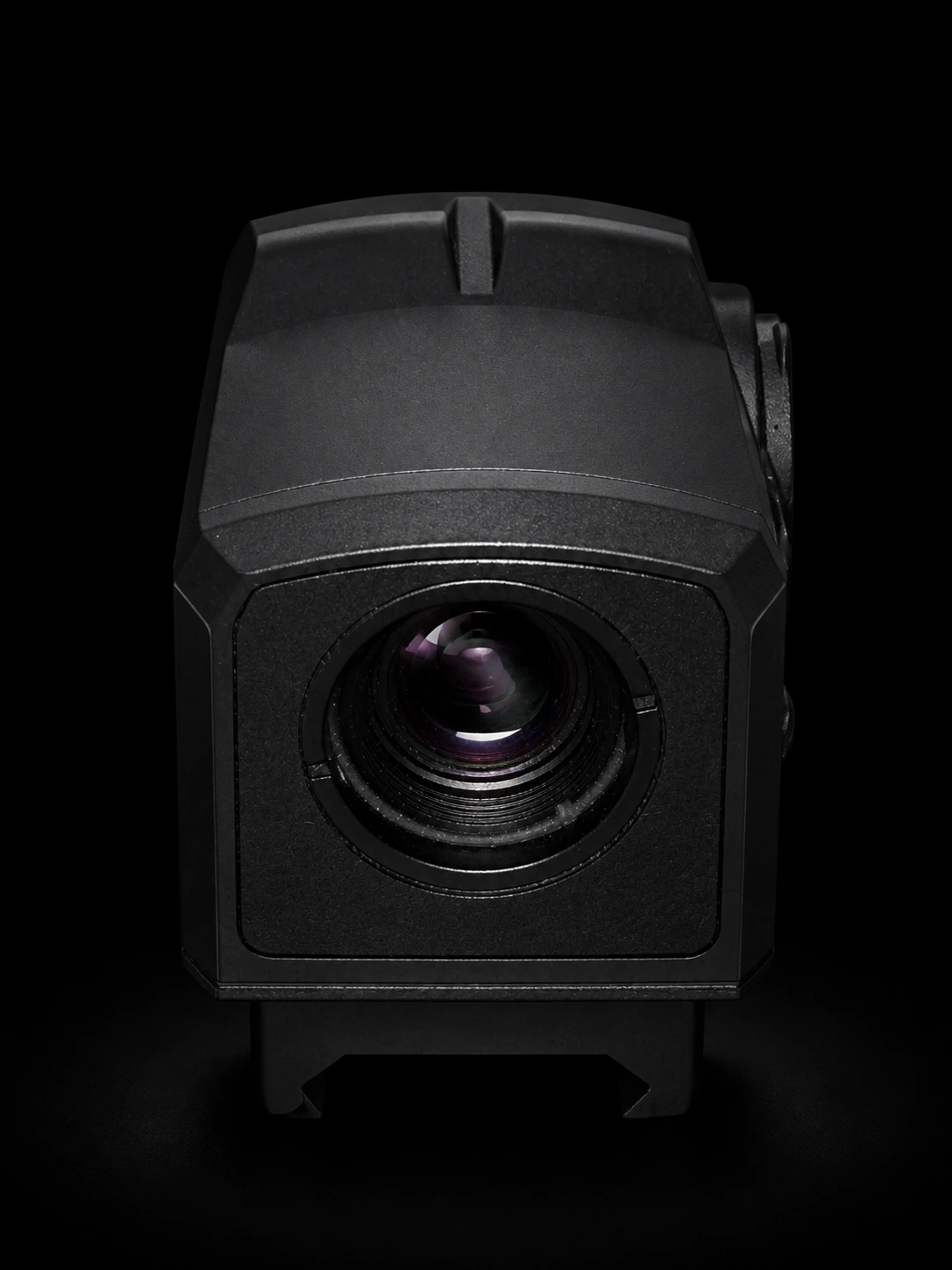

13mm F1.0 germanium objective

TrueHeat™ · Thermal core

See through foliage,
in the dark,
see them first

A 256×192 / 12µm uncooled core with sub-25 mK sensitivity picks up the faint thermal difference between a living thing and the ground it stands on. In pitch black, through smoke, across a treeline. No IR illuminator, no moonlight, nothing to give you away.

≤25 mKNETD

12 µmPixel pitch

F1.0Aperture

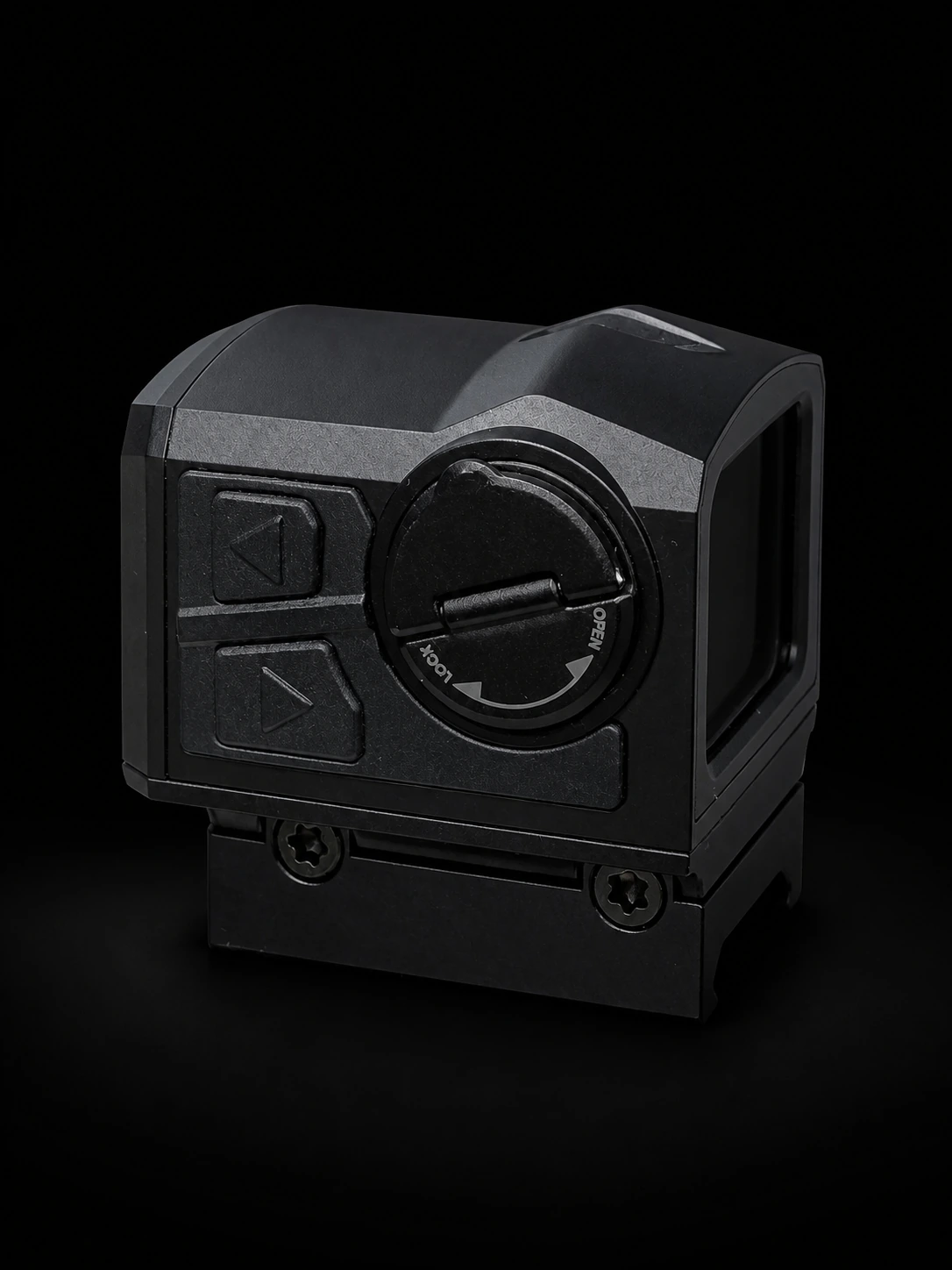

Rubicon R2 control side with dial and tactile buttons

Dial + tactile buttons · SwiftSync™

SwiftSync™ · Ready from standby

Everything
in reach

A knurled dial and two gloved-hand buttons put palette, zoom and reticle a thumb away. SwiftSync™ brings the thermal view out of standby as you raise the unit, without menu diving.

Digital zoom0.5–1×

SwiftSync™Ready from standby

1000 gRated

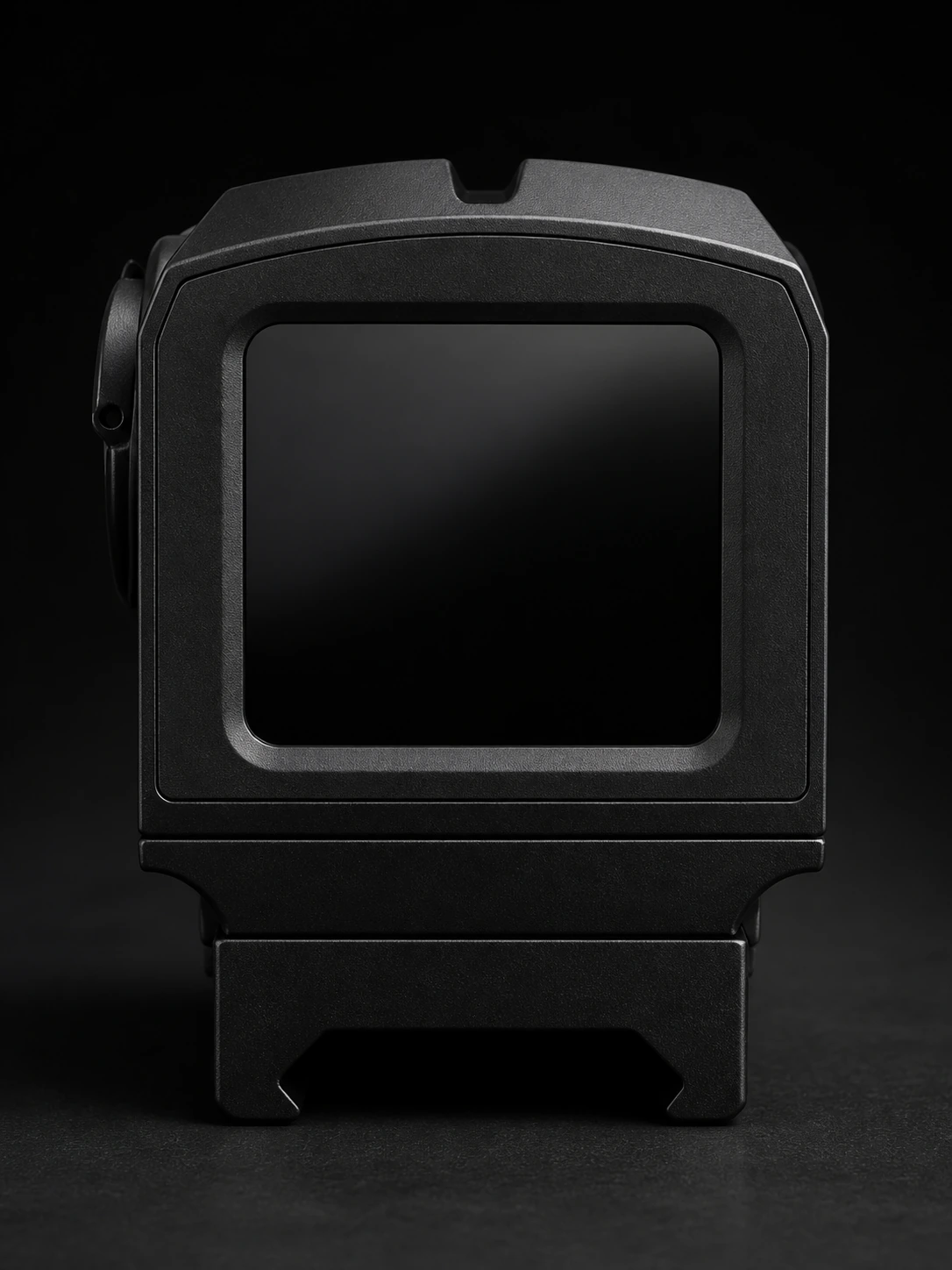

1.4″ LCD · 360×300

TrueMotion™ · Display & refresh

TrueMotion™

No smear. A bright 1.4-inch LCD driven at 60 Hz keeps fast movement crisp instead of ghosting into a blur. Multiple reticle patterns, auto brightness, and Black Hot, Yellow Hot, Blue / Rainbow and White Hot palettes all live on the screen.

60 HzFrame rate

1.4″Display

4Palettes

Technical

Full spec

Detector

Uncooled VOx microbolometer, 256×192, 12µm

Sensitivity (NETD)

≤ 25 mK

Frame rate

60 Hz

Objective

13 mm, F1.0

Field of view

13.5° × 10.1°

Digital zoom

0.5–1×

Display

1.4″ LCD, 360 × 300

Palettes

Black Hot · Yellow Hot · Blue / Rainbow · White Hot

Reticles

Multiple patterns, selectable

Power

1× CR2 rechargeable · USB-C charging

Runtime

≈ 5 h continuous

Recoil rating

1000 g rated

Water resistance

IP67

Weight

≈ 80 g (excl. battery)

Dimensions

50 × 38 × 44 mm

Aiming

On-screen digital reticle - red / blue / white, 3 sizes, zeroable

Every angle

The R2, up close

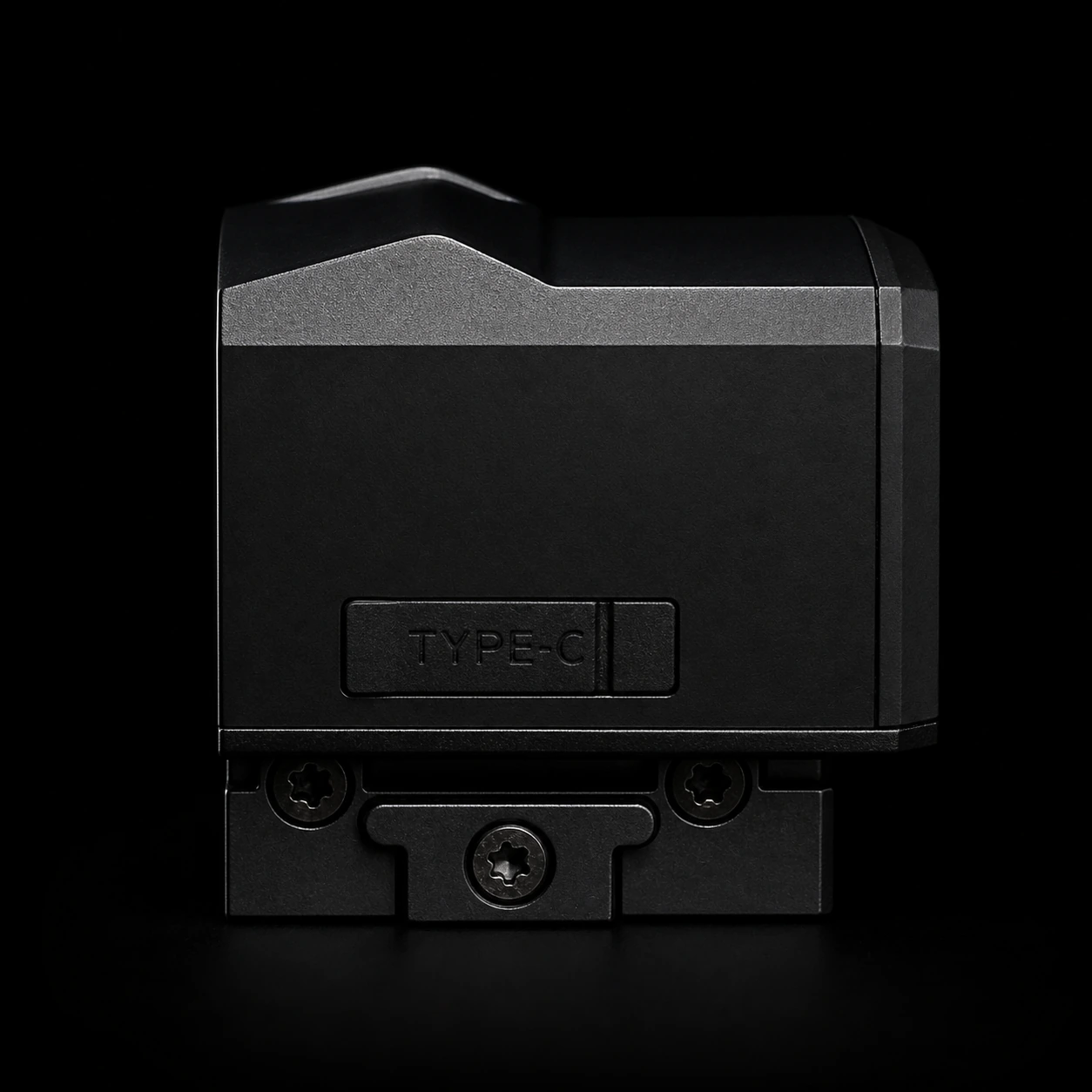

USB-C side

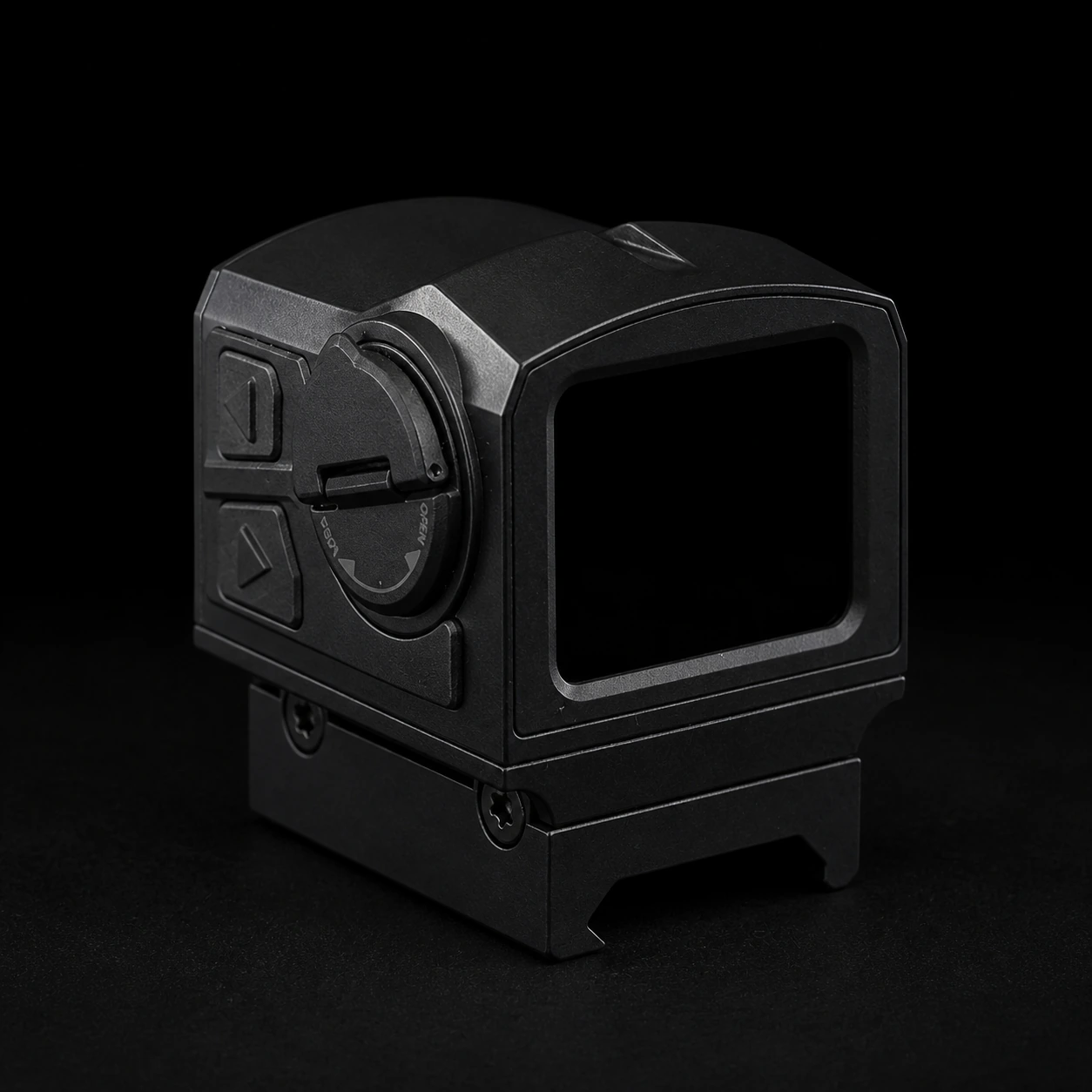

Rubicon R2 rear three-quarter showing controls and display — Rear three-quarter

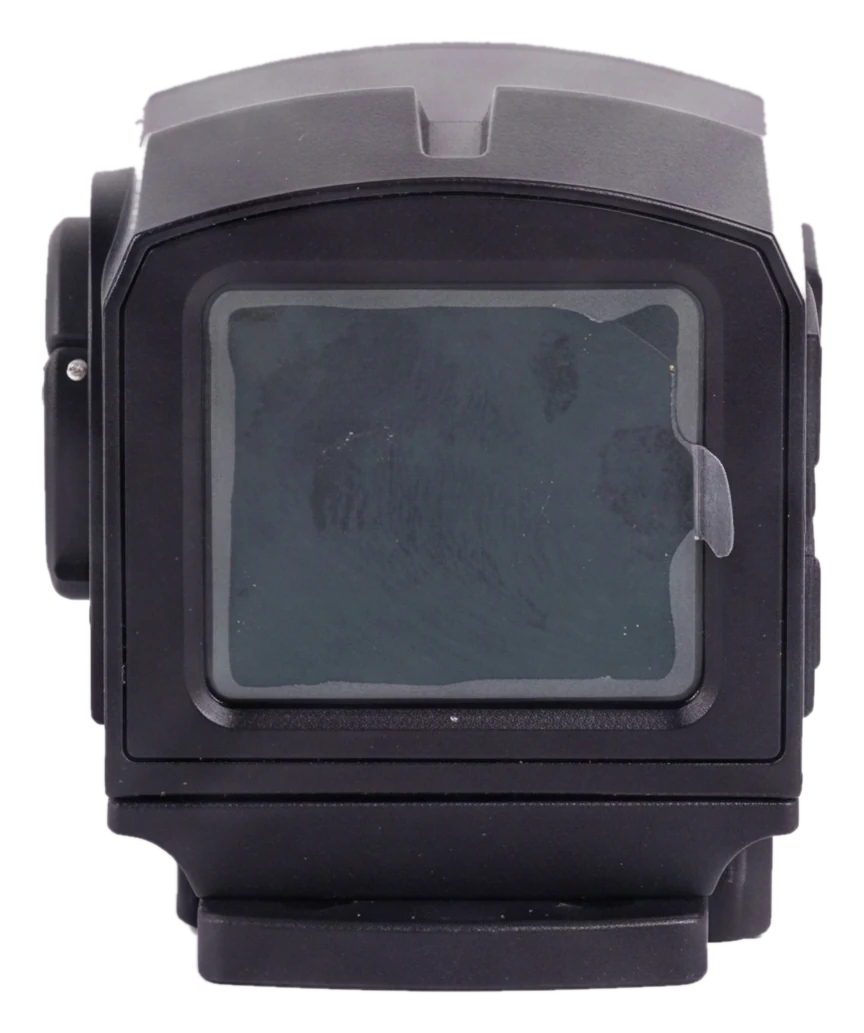

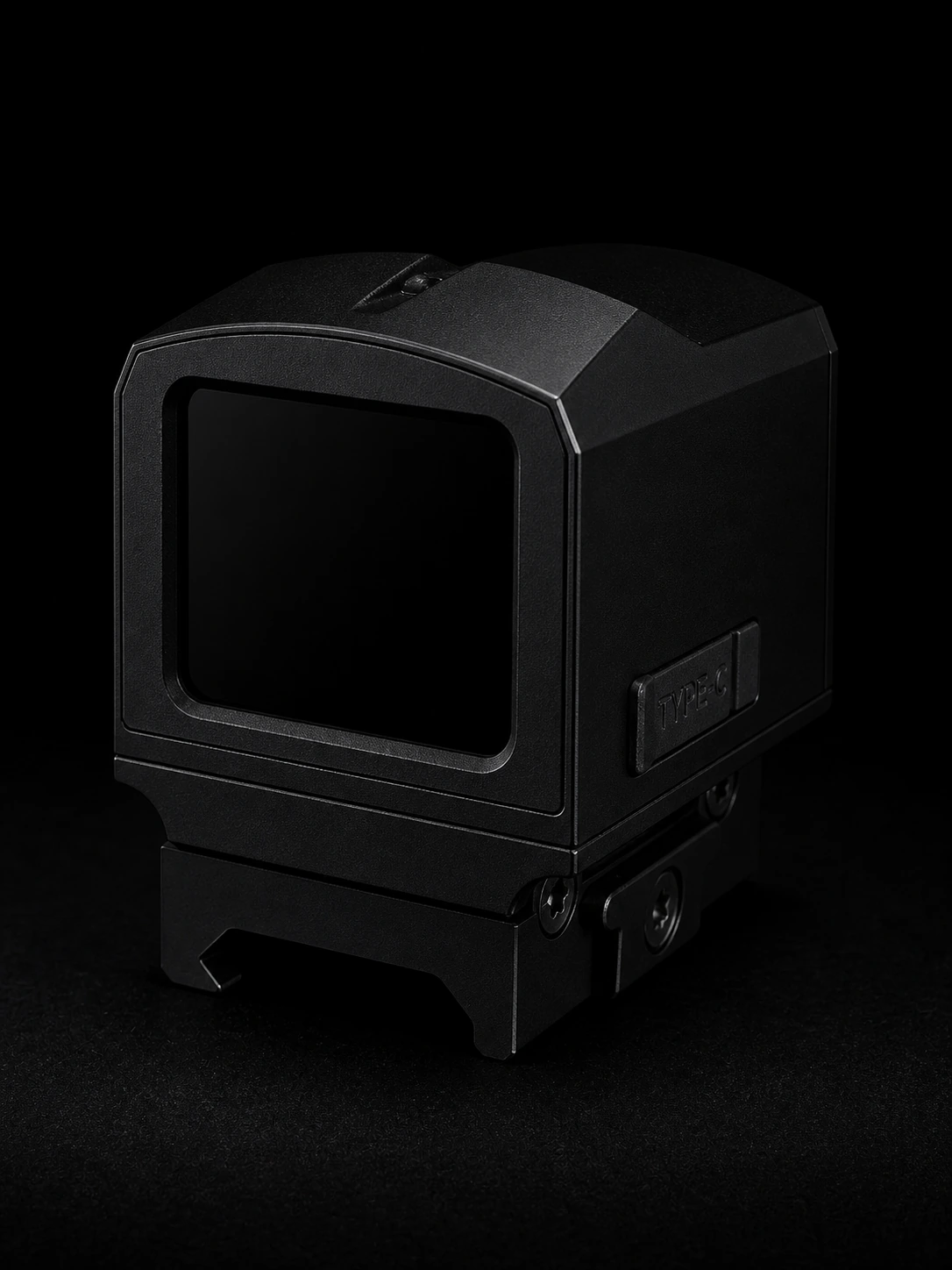

Rubicon R2 rear three-quarter showing the display and USB-C port — Display & USB-C

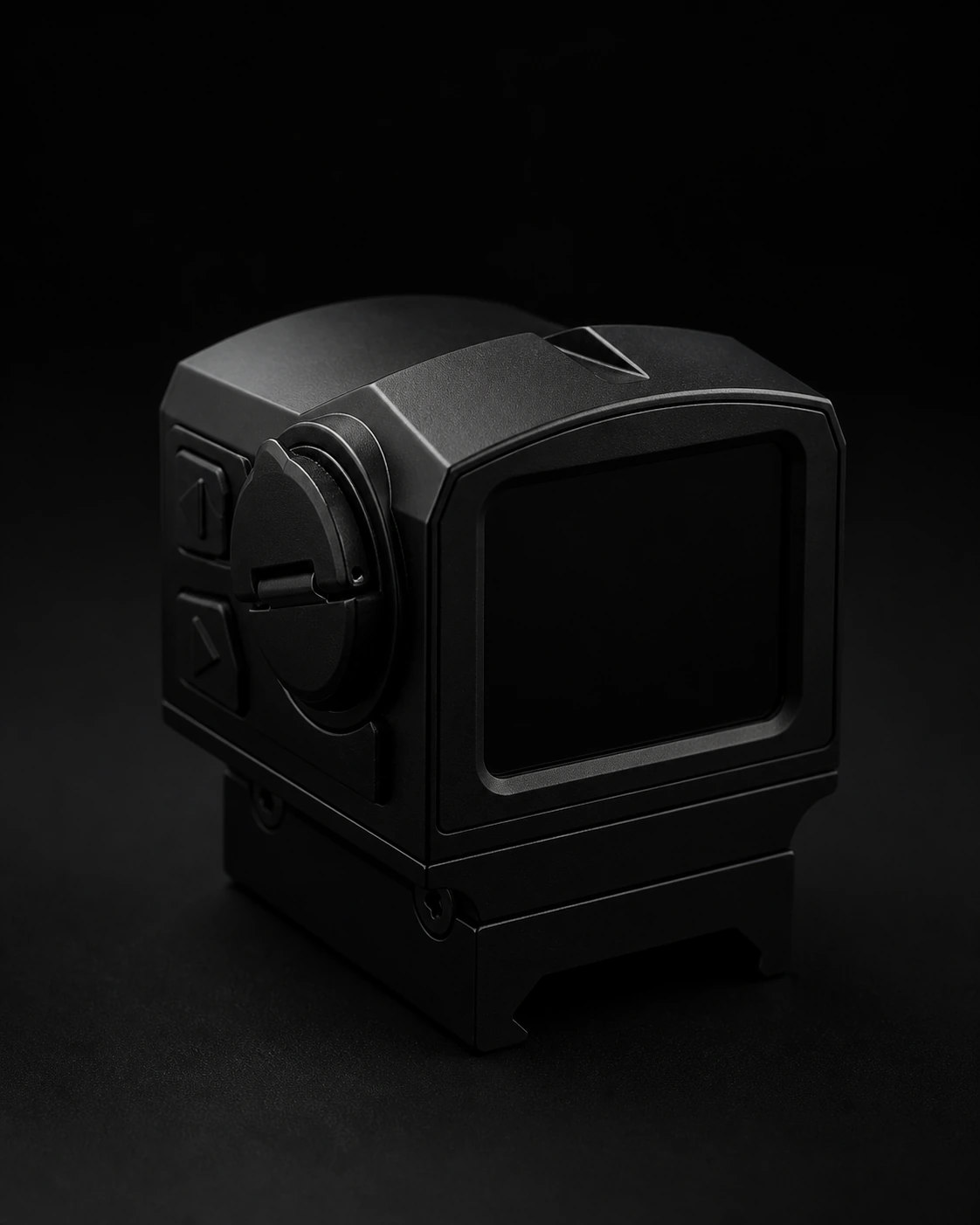

Rubicon R2 elevated rear view with display and controls — Elevated rear

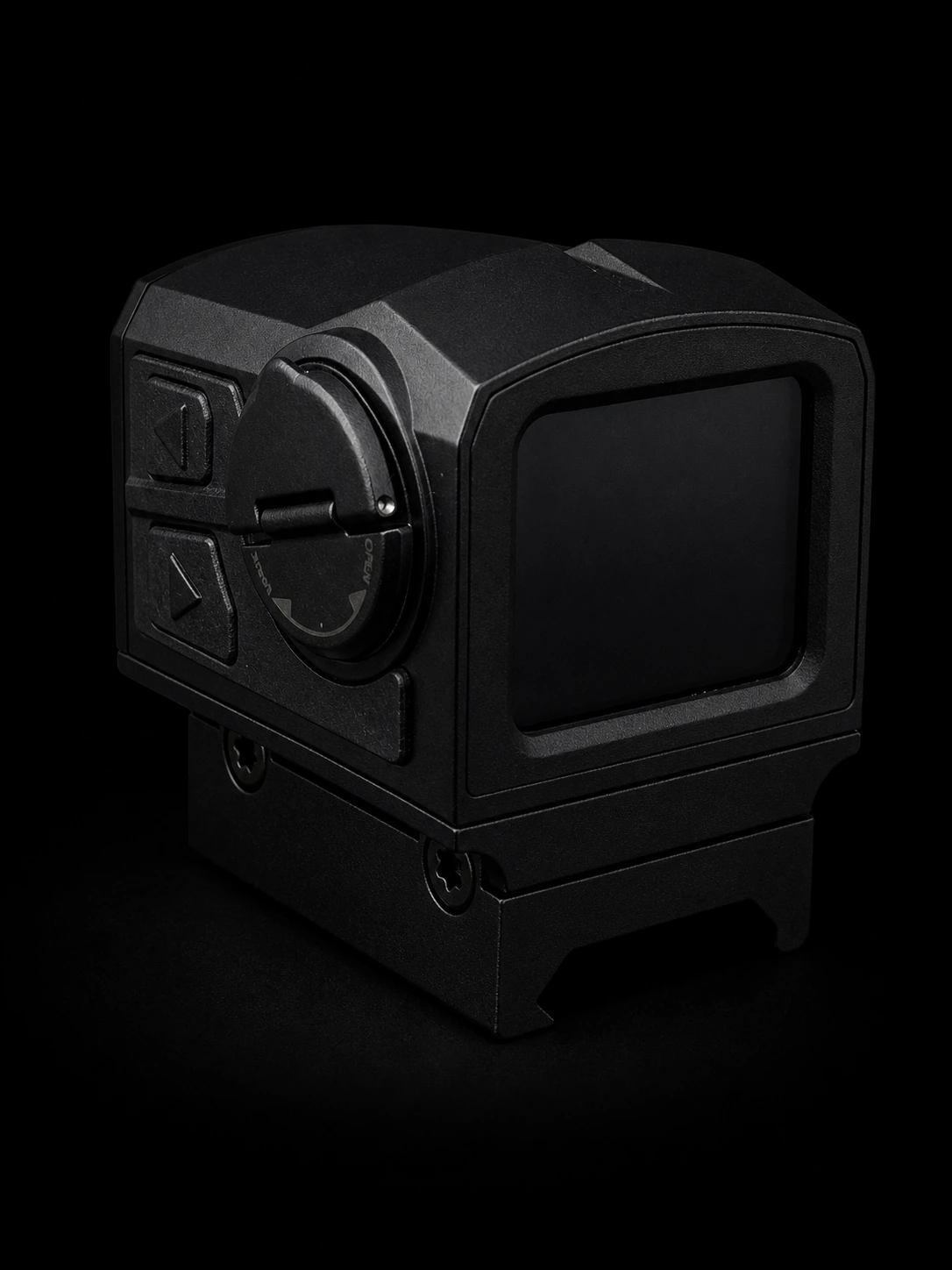

Rubicon R2 elevated rear view of the control cluster — Elevated controls

Four thermal palettes

Choose how
heat reads.

Black Hot, Yellow Hot, Blue / Rainbow and White Hot. Switch between them on the screen with the dial, no menu diving.

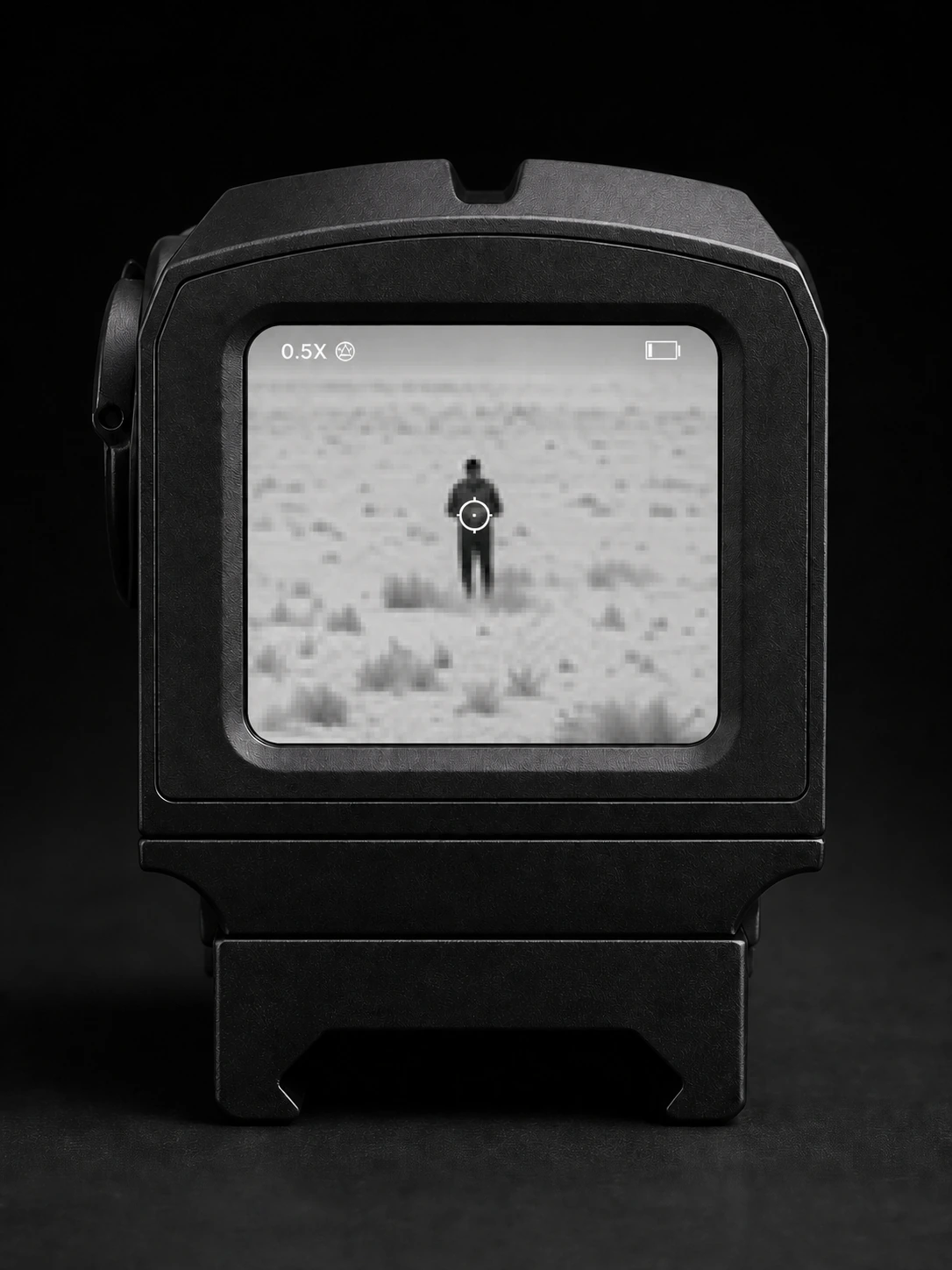

Rubicon R2 screen shown in the Black Hot thermal palette — Black Hot

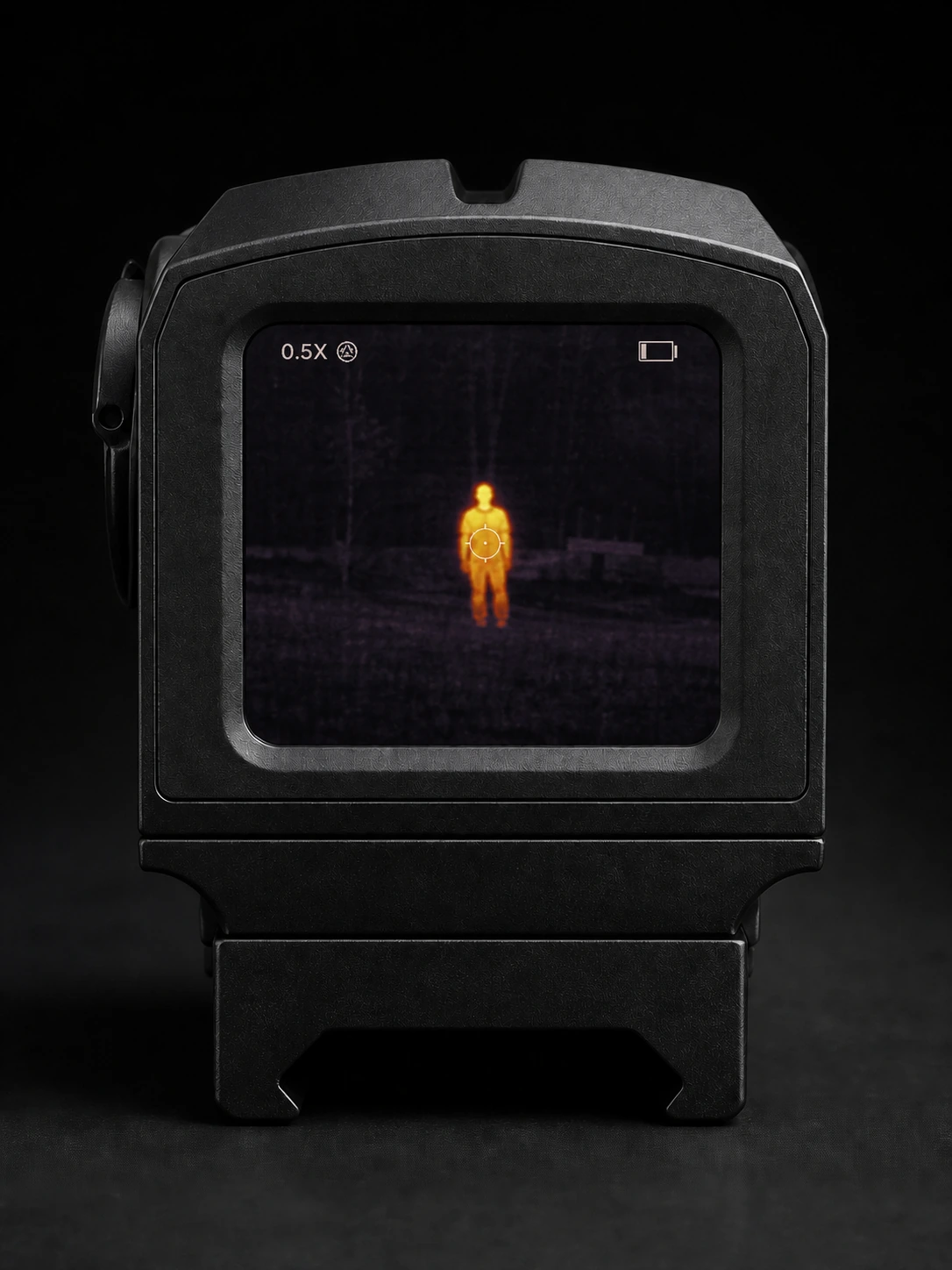

Rubicon R2 screen shown in the Yellow Hot thermal palette — Yellow Hot

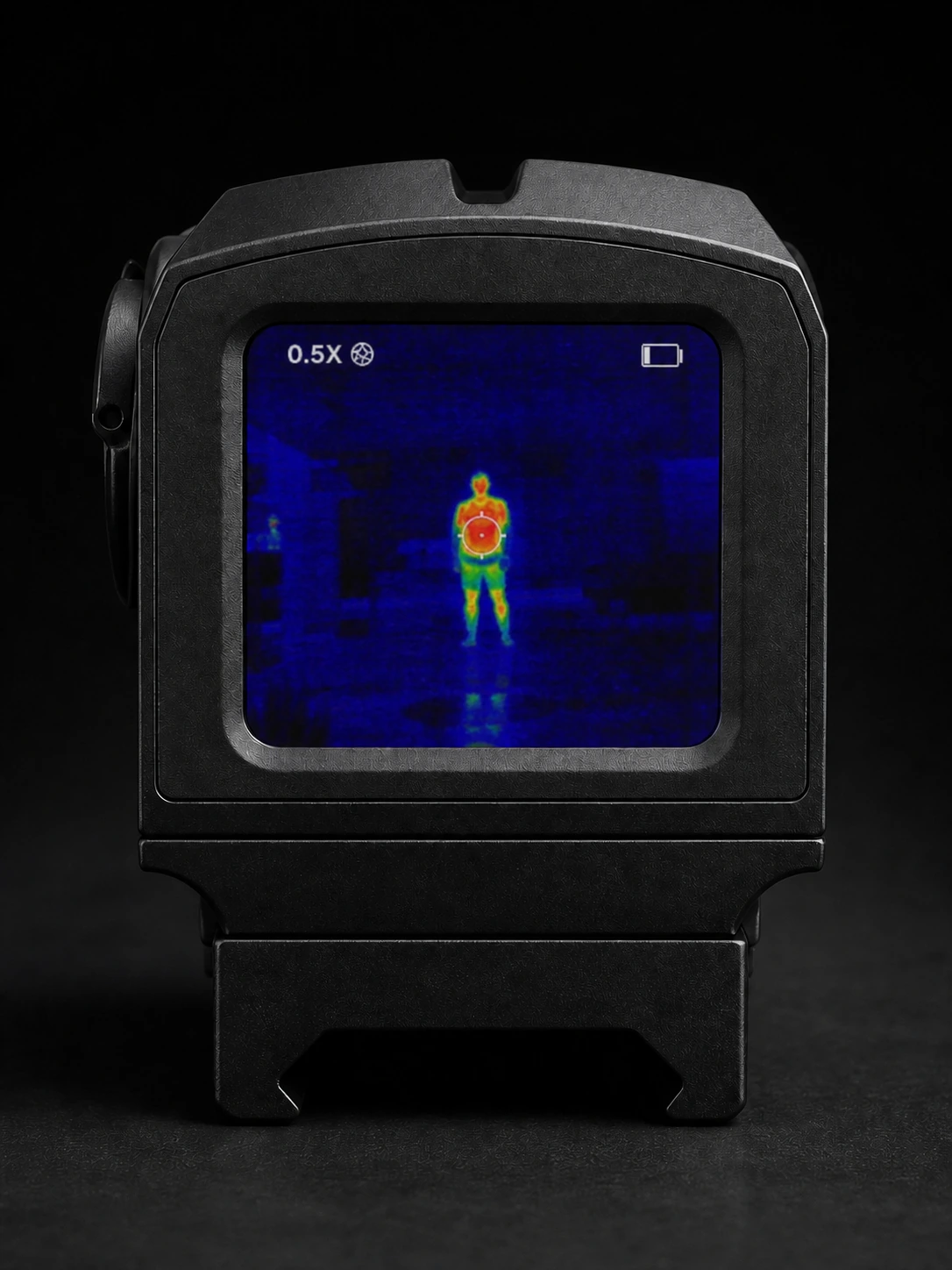

Rubicon R2 screen shown in the Blue / Rainbow thermal palette — Blue / Rainbow

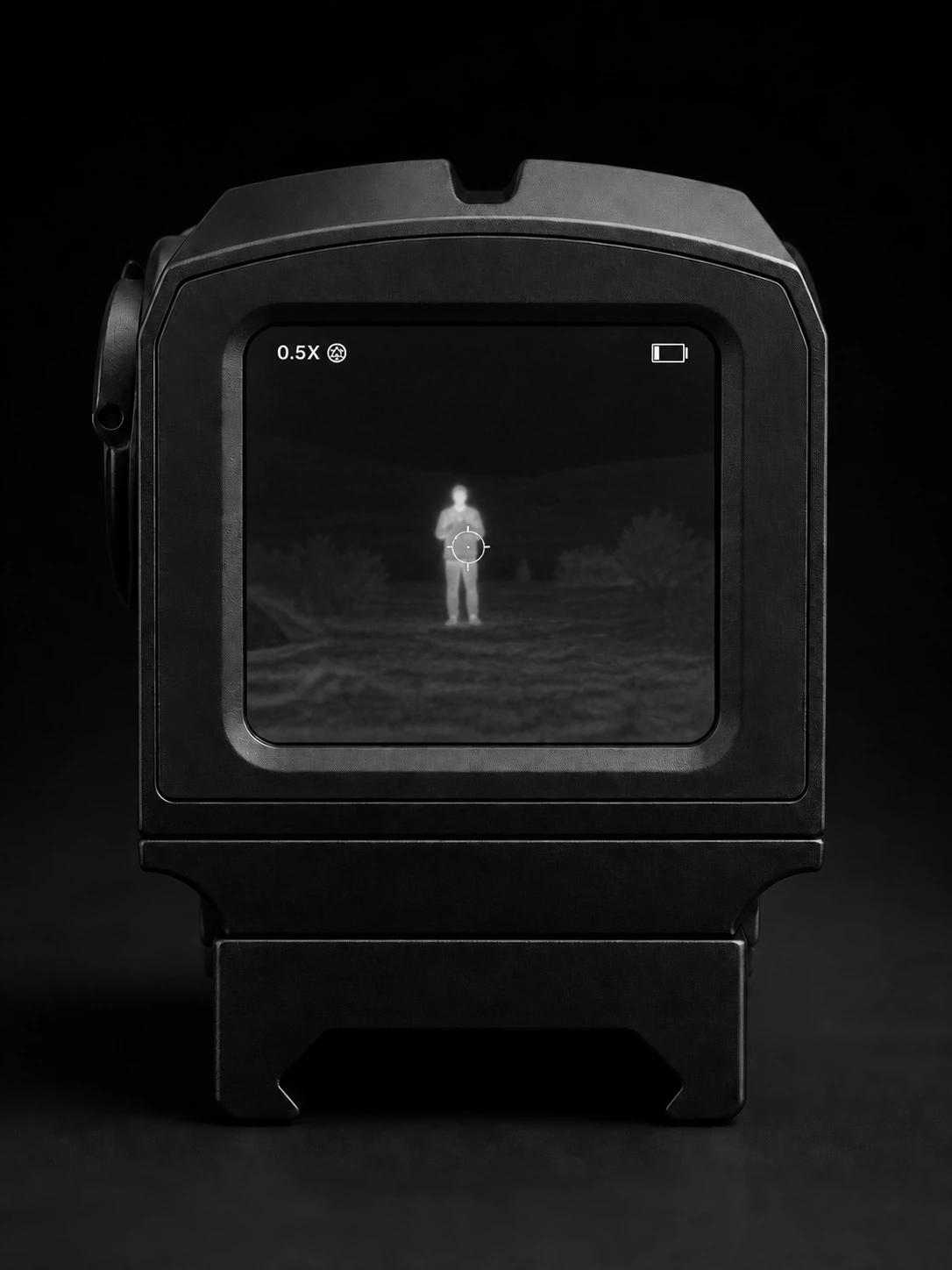

Rubicon R2 screen shown in the White Hot thermal palette — White Hot

Screen imagery is a representation based on the R2 display layout. Actual thermal imagery varies with the subject and conditions.

Rubicon R2 seen from an elevated rear angle, controls and display

In the box

Everything to
go dark

01 Rubicon R2 thermal sight
02 CR2 rechargeable battery
03 USB-C charging cable
04 Hard carry case + lens cloth
05 Protective cap
06 Quick-start guide

Field-ready

Built for the
night game

Designed around long airsoft milsim nights and recon patrols, and just as at home on a hunt. Light, sealed, and quick to wake.

SwiftSync™

Ready from standby

SwiftSync™ brings the thermal picture back from standby as you raise the unit. No menu diving.

Aim

Zeroed on-screen dot

A digital reticle in three sizes and three colours, zeroed to your rig. No separate optic to mount or co-witness.

Sealed & powered

IP67 · CR2 · USB-C

Rated IP67, powered by a rechargeable CR2 with USB-C top-ups and spares you can swap in the dark.

Questions

Good to know

Yes. Thermal imaging detects emitted heat, not reflected light, so the R2 sees in complete darkness with no moonlight, no IR illuminator and nothing to reveal your position. It also cuts through smoke, fog and light foliage.

No separate optic to mount or co-witness. The R2 draws the reticle on the thermal screen itself: a red, blue or white dot in three sizes. You zero it to your setup. Airsoft players zero it to their existing red dot for accurate hits past 20 m; hunters zero to point of impact. Sleep/wake keeps it live without a slow boot.

About 5 hours of continuous use on a single rechargeable CR2. Recharge over USB-C, or swap in a fresh CR2 to keep going. SwiftSync™ standby stretches real-world runtime well beyond continuous-on figures.

Rated IP67 and built for rain, mud and dew, with a 1000 g recoil rating.

No. This preview uses Stripe test mode, so no real card is charged and no real order is created.

We ship within the European Union with tracked, insured delivery. This page is a test-mode reservation preview and does not create a real order.

Thermal imaging is an export-controlled technology and rules on ownership and use vary by country and application. We ship within the EU in line with applicable dual-use regulations; buyers are responsible for compliance with local law. Reach out if you're unsure about your jurisdiction.
